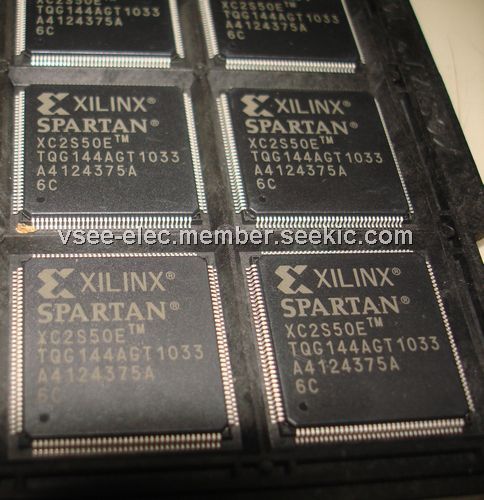

XC2S50E-6TQG144C

IC SPARTAN-IIE, Field-Programmable Gate Array(FPGA), 50K, 144-TQFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~7.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~7.50

PartNumber:: XC2S50E-6TQG144C

Brand:: Xilinx, Inc - Xilinx | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Vanilla's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-23

From Other Seller

Part Number:XC2S50E-6TQG144C
US $1.00 - 7.50
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
RTL8309SC

US $1.50 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The XC2S50E-6TQG144C Field-Programmable Gate Array gives users high performance, abundant logic resources, and a rich feature set, all at an exceptionally low price. The XC2S50E-6TQG144C offers densities ranging from 50,000 to 600,000 system gates. System performance is supported beyond 200 MHz. The XC2S50E-6TQG144C is a superior alternative to mask-programmed ASIC. The FPGA avoids the initial cost, lengthy development cycles, and inherent risk of conventional ASICs. Also, FPGA programmability permits design upgrades in the field with no hardware replacement necessary (impossible with ASICs).

Parametrics

XC2S50E-6TQG144C absolute maximum ratings: (1)Supply voltage relative to GND, VCCINT: -0.5 to 2.0V; (2)Supply voltage relative to GND, VCCO: -0.5 to 4.0V; (3)Input reference voltage, VREF: -0.5 to 4.0V; (4)Input voltage relative to GND (2,3), VIN: -0.5 to 4.0V; (5)Voltage applied to 3-state output, VTS: -0.5 to 4.0V; (6)Storage temperature (ambient), TSTG: -65 to +150℃; (7)Junction temperature, TJ: +125℃.

Features

XC2S50E-6TQG144C features: (1)Second generation ASIC replacement technology; (2)System level features; (3)SelectRAM hierarchical memory; (4)Versatile I/O and packaging; (5)Pb-free package options; (6)Low-cost packages available in all densities; (7)Family footprint compatibility in common packages; (8)19 high-performance interface standards; (9)Up to 205 differential I/O pairs that can be input, output, or bidirectional; (10)Hot swap I/O (CompactPCI friendly); (11)Core logic powered at 1.8V and I/Os powered at 1.5V, 2.5V, or 3.3V; (12)Fully supported by powerful Xilinx ISE development system.
