Product Summary
The TMS320F206PZ Texas Instruments (TI) digital signal processor (DSP) is fabricated with static CMOS integrated-circuit technology, and the architectural design is based upon that of the TMS320C20x series, optimized for low-power operation. The combination of advanced Harvard architecture, on-chip peripherals, on-chip memory, and a highly specialized instruction set is the basis of the operational flexibility and speed of the F206.
Parametrics
TMS320F206PZ absolute maximum ratings: (1)Supply voltage range, VDD: -0.3 V to 7 V; (2)Input voltage range: -0.3 V to 7 V; (3)Output voltage range: -0.3 V to 7 V; (4)Operating free-air temperature range, TA : -40℃ to 85℃; (5)Storage temperature range, Tstg: -55℃ to 150℃.
Features
TMS320F206PZ features: (1)High-Performance Static CMOS Technology; (2)Includes the T320C2xLP Core CPU; (3)TMS320F206 is a Member of the TMS320C20x Generation, Which Also Includes the TMS320C203, and TMS320C209 Devices; (4)Instruction-Cycle Time 50 ns @ 5 V; (5)Source Code Compatible With TMS320C25; (6)Upwardly Code-Compatible With TMS320C5x Devices; (7)Three External Interrupts; (8)32-Bit ALU/Accumulator; (9)16×16-Bit Multiplier With a 32-Bit Product; (10)Block Moves from Data and Program Space; (11)Input Clock Options: Options-Multiply-by-One, -Two, or -Four and Divide-by-Two; (12)Support of Hardware Wait States; (13)Power Down IDLE Mode; (14)IEEE 1149.1Compatible Scan-Based Emulation; (15)100-Pin Thin Quad Flat Package (TQFP)(PZ Suffix).

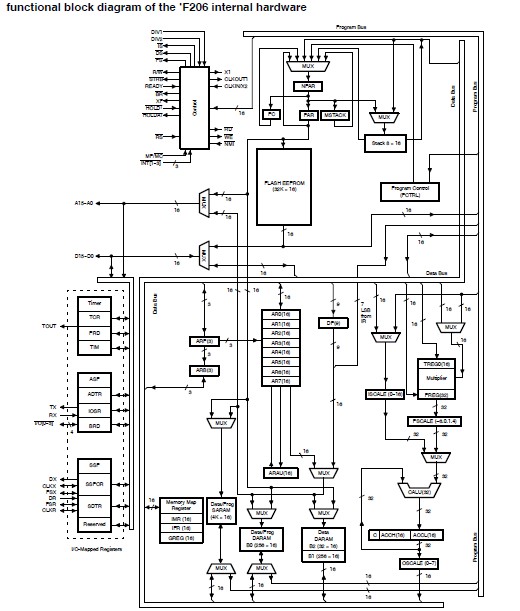

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TMS320F206PZ |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) Digital Signal Proc |
Data Sheet |
Negotiable |
|
||||
|
TMS320F206PZA |
Texas Instruments |
Digital Signal Processors & Controllers (DSP, DSC) Digital Signal Proc |
Data Sheet |
Negotiable |
|
||||
