Product Summary
The XCF04SVOG20C is a Platform Flash In-System Programmable Configuration PROM, which includes 4-Mbit, 2-Mbit, and 1-Mbit PROMs that support Master Serial and Slave Serial FPGA configuration modes.
Parametrics
XCF04SVOG20C absolute maximum ratings: (1)Internal supply voltage relative to GND: –0.5 to +4.0 V; (2)I/O supply voltage relative to GND: –0.5 to +4.0 V; (3)JTAG I/O supply voltage relative to GND: –0.5 to +4.0 V; (4)Input voltage with respect to GND: –0.5 to +3.6 V at VCCO < 2.5V, –0.5 to +5.5 V at VCCO ≥ 2.5V; (5)Storage temperature (ambient): –65 to +150 ℃; (6)Junction temperature: +125 ℃.
Features
XCF04SVOG20C features: (1)In-System Programmable PROMs for Configuration of Xilinx FPGAs; (2)Low-Power Advanced CMOS NOR FLASH Process; (3)Endurance of 20,000 Program/Erase Cycles; (4)Operation over Full Industrial Temperature Range (-40℃ to +85℃); (5)IEEE Standard 1149.1/1532 Boundary-Scan (JTAG) Support for Programming, Prototyping, and Testing; (6)JTAG Command Initiation of Standard FPGA.

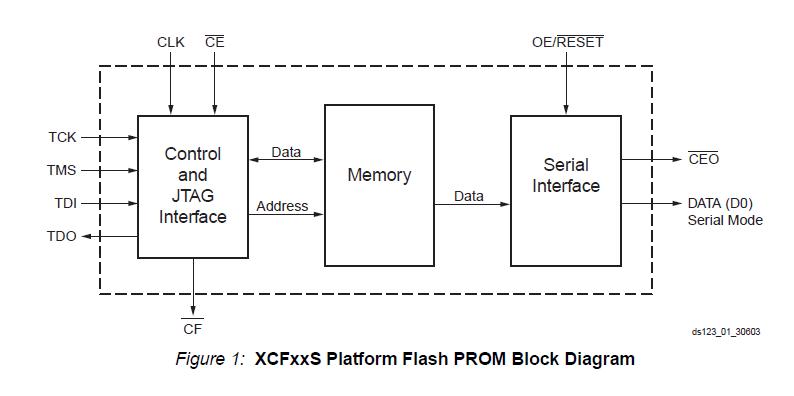

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 XCF04SVOG20C |
Other |
|
Data Sheet |
Negotiable |
|
||||
